GroundingDINO: Introduction & Paper Overview

Notebook 01 of 14

Paper: Grounding DINO: Marrying DINO with Grounded Pre-Training for Open-Set Object Detection Authors: Shilong Liu, Zhaoyang Zeng, Tianhe Ren, Feng Li, Hao Zhang, Jie Yang, Chunyuan Li, Jianwei Yang, Hang Su, Jun Zhu, Lei Zhang ArXiv: https://arxiv.org/abs/2303.05499 Year: 2023

---

Table of Contents

1. What is GroundingDINO?
2. Problem Statement: Open-Set Object Detection
3. Key Contributions
4. Comparison with Prior Work
5. High-Level Architecture Overview
6. Performance Benchmarks
7. Zero-Shot Transfer Capabilities
8. Notebook Series Overview

1. What is GroundingDINO? <a id='what-is-groundingdino'></a>

GroundingDINO is an open-set object detection model that combines:

• DINO (Detection with Transformers using Improved deNoising anchor boxes) — a state-of-the-art closed-set detector
• Grounded Pre-Training — a technique to align visual and language representations

The key insight: by marrying a powerful visual detector with language understanding, we get a model that can detect any object described in natural language, even objects never seen during training.

What makes it special?

`` Traditional Detector: Image → [Fixed N classes] → Bounding Boxes GroundingDINO: Image + Text Query → [Any described object] → Bounding Boxes ``

Example queries:

• "cat" → detects cats
• "the red cup on the table" → detects specific cup
• "person wearing a hat" → detects people with hats
• "all objects" → detects everything
• "dog . cat . bird" → detects multiple categories (dot-separated)

2. Problem Statement: Open-Set Object Detection <a id='problem-statement'></a>

The Challenge

Traditional object detectors (YOLO, Faster R-CNN, DETR) are closed-set: they can only detect objects from a fixed set of categories defined at training time.

Limitations:

• COCO has 80 categories — what about the other millions of object types?
• Cannot handle novel objects at test time
• Cannot understand spatial/relational descriptions
• Require expensive re-training for new categories

Open-Set Object Detection Definition

Given:

• An image $I \in \mathbb{R}^{H \times W \times 3}$
• A text query $T$ (e.g., "cat", "person wearing red shirt")

Predict:

• Bounding boxes $\{b_i\}$ where $b_i = (x_c, y_c, w, h)$ (normalized)
• Confidence scores $\{s_i\}$ for each box
• Phrase-level grounding (which words correspond to which box)

Formal Problem

$$f_{\theta}(I, T) \rightarrow \{(b_i, s_i, p_i)\}_{i=1}^{N}$$

where:

• $b_i \in [0,1]^4$ — normalized bounding box
• $s_i \in [0,1]$ — confidence score
• $p_i$ — phrase alignment (which tokens in $T$ correspond to $b_i$)
• $N$ — number of detected objects (variable)

3. Key Contributions <a id='key-contributions'></a>

The paper makes 5 key contributions:

Contribution 1: Tight Fusion Architecture

Unlike previous methods that loosely combine vision and language, GroundingDINO introduces deep cross-modal fusion at multiple stages:

• Feature-level fusion (Feature Enhancer)
• Query-level fusion (Language-Guided Query Selection)
• Prediction-level fusion (Cross-Modal Decoder)

Contribution 2: Language-Guided Query Selection

Instead of using fixed learned queries (like DETR), GroundingDINO selects queries guided by the text input. This ensures the model focuses on regions relevant to the text query.

Contribution 3: Cross-Modality Decoder

A novel decoder that performs cross-attention between visual features and text features at every decoder layer, enabling fine-grained alignment.

Contribution 4: Sub-Sentence Level Text Features

The model operates at the phrase/token level, not just sentence level, enabling fine-grained grounding of specific words to specific regions.

Contribution 5: State-of-the-Art Zero-Shot Transfer

Achieves 52.5 AP on COCO zero-shot (without any COCO training data), surpassing many fully-supervised models.

---

Summary Table

4. Comparison with Prior Work <a id='comparison'></a>

Evolution of Object Detection

Key Differences from GLIP (closest prior work)

5. High-Level Architecture Overview <a id='architecture-overview'></a>

GroundingDINO has a dual-encoder, single-decoder architecture:

`` ┌─────────────────────────────────────────────────────────────────┐ │ GroundingDINO Architecture │ ├─────────────────────────────────────────────────────────────────┤ │ │ │ Image ──→ [Swin Transformer] ──→ Multi-scale Features │ │ │ │ │ Text ──→ [BERT Encoder] ──→ Text Features │ │ │ │ │ [Feature Enhancer] │ │ (Cross-modal self-attention) │ │ │ │ │ [Language-Guided Query Selection] │ │ (Select top-K image features by text) │ │ │ │ │ [Cross-Modal Decoder] │ │ (6 layers of cross-attention) │ │ │ │ │ [Detection Head] │ │ (Box regression + Contrastive score) │ │ │ │ │ Output: Boxes + Scores + Phrases │ └─────────────────────────────────────────────────────────────────┘ ``

Three Stages of Fusion

1. Feature Enhancer: Fuses image and text features using cross-attention
2. Query Selection: Uses text to select relevant image regions as queries
3. Decoder: Cross-modal attention at every decoder layer

This is fundamentally different from GLIP which only fuses at the feature level.

6. Performance Benchmarks <a id='performance'></a>

COCO Detection Results

ODinW (Object Detection in the Wild) - 35 datasets

Referring Expression Comprehension

7. Zero-Shot Transfer Capabilities <a id='zero-shot'></a>

One of the most impressive aspects of GroundingDINO is its zero-shot transfer capability.

What is Zero-Shot Transfer?

The model is trained on a large dataset (Objects365, GoldG, Cap4M, etc.) but never sees COCO training data. Yet it achieves 52.5 AP on COCO — better than many supervised models!

Training Data Used

• Objects365: 365 categories, 1.7M images
• GoldG: Grounded image-text pairs
• Cap4M: 4M image-caption pairs
• COCO (for supervised fine-tuning only)

Why Zero-Shot Works

1. Language provides a universal interface — any concept can be described
2. Large-scale grounded pre-training teaches visual-language alignment
3. The model learns transferable representations not tied to specific categories

Practical Implications

• Deploy once, detect anything
• No need to collect labeled data for new categories
• Handles long-tail objects naturally
• Enables referring expression comprehension ("the second person from the left")

8. Notebook Series Overview <a id='series-overview'></a>

This series of notebooks covers every aspect of GroundingDINO:

---

Summary

GroundingDINO represents a significant advance in object detection by:

1. Unifying visual detection and language understanding
2. Enabling open-vocabulary detection without retraining
3. Achieving state-of-the-art zero-shot performance
4. Providing fine-grained phrase-level grounding

The key insight is that language is a universal interface for specifying what to detect, and by deeply fusing language and vision at multiple stages, we get a model that generalizes far beyond its training categories.

Next: Notebook 02 - Swin Transformer Backbone

GroundingDINO: Swin Transformer Backbone

Notebook 02 of 14

This notebook covers the Swin Transformer visual backbone used in GroundingDINO, including:

• Architecture details and design choices
• Tensor shapes at every layer
• Window attention mechanism
• Multi-scale feature extraction
• Live implementation and visualization

---

Table of Contents

1. Why Swin Transformer?
2. Swin Transformer Architecture
3. Patch Partition & Linear Embedding
4. Window-Based Self-Attention (W-MSA)
5. Shifted Window Attention (SW-MSA)
6. Swin Transformer Block
7. Hierarchical Feature Maps
8. Tensor Shapes Through the Network
9. Implementation & Visualization

1. Why Swin Transformer? <a id='why-swin'></a>

GroundingDINO uses Swin Transformer as its visual backbone because:

Swin Variants Used in GroundingDINO

Key Difference from ViT

`` ViT: Image → [16×16 patches] → Single-scale features → Transformer Swin: Image → [4×4 patches] → Hierarchical features → Transformer (4 stages, 4× downsampling each) ``

2. Swin Transformer Architecture <a id='architecture'></a>

Overall Structure

For an input image of size $H \times W \times 3$:

`` Input: H×W×3 ↓ Patch Partition (4×4): H/4 × W/4 × 48 ↓ Linear Embedding: H/4 × W/4 × C (C=96 for Swin-T) ↓ Stage 1: H/4 × W/4 × C (2 Swin blocks) ↓ Patch Merging Stage 2: H/8 × W/8 × 2C (2 Swin blocks) ↓ Patch Merging Stage 3: H/16 × W/16 × 4C (6 Swin blocks) ↓ Patch Merging Stage 4: H/32 × W/32 × 8C (2 Swin blocks) ``

For Swin-T (C=96) with 800×1333 input:

• Stage 1: 200×334×96
• Stage 2: 100×167×192
• Stage 3: 50×84×384
• Stage 4: 25×42×768

GroundingDINO uses Stages 2, 3, 4 as multi-scale features (FPN-like).

3. Patch Partition & Linear Embedding <a id='patch-partition'></a>

Patch Partition

The image is split into non-overlapping 4×4 patches:

$$\text{Input}: H \times W \times 3 \rightarrow \frac{H}{4} \times \frac{W}{4} \times (4 \times 4 \times 3) = \frac{H}{4} \times \frac{W}{4} \times 48$$

Linear Embedding

A linear layer projects the 48-dim patch features to C-dim:

$$\frac{H}{4} \times \frac{W}{4} \times 48 \xrightarrow{\text{Linear}} \frac{H}{4} \times \frac{W}{4} \times C$$

For Swin-T: C=96, Swin-S/B: C=96, Swin-L: C=192

Patch Merging (Downsampling)

Between stages, spatial resolution is halved and channels doubled:

$$\frac{H}{4} \times \frac{W}{4} \times C \xrightarrow{\text{Patch Merge}} \frac{H}{8} \times \frac{W}{8} \times 2C$$

Implementation: Take 2×2 neighboring patches → concatenate → linear projection

4. Window-Based Self-Attention (W-MSA) <a id='window-attention'></a>

The Problem with Global Attention

Standard self-attention has $O(N^2)$ complexity where $N$ is the number of tokens. For a 800×1333 image with 4×4 patches: $N = 200 \times 334 = 66,800$ tokens → $O(4.5 \times 10^9)$ operations!

Window Attention Solution

Partition the feature map into non-overlapping windows of size $M \times M$ (default M=7):

$$\text{Complexity: } O\left(\frac{HW}{M^2} \cdot M^4 \cdot d\right) = O(HW \cdot M^2 \cdot d)$$

This is linear in image size!

Window Attention Formula

For each window of $M^2$ tokens: $$\text{Attention}(Q, K, V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}} + B\right)V$$

where $B$ is the relative position bias — a learnable bias based on relative positions within the window.

Relative Position Bias

For a window of size $M \times M$, relative positions range from $[-(M-1), M-1]$. A learnable bias table $\hat{B} \in \mathbb{R}^{(2M-1) \times (2M-1)}$ is used:

$$B_{ij} = \hat{B}[\Delta x_{ij} + M - 1, \Delta y_{ij} + M - 1]$$

5. Shifted Window Attention (SW-MSA) <a id='shifted-window'></a>

The Problem with Regular Windows

Regular window attention has no cross-window connections — tokens in different windows never interact!

Shifted Window Solution

Alternate between:

1. W-MSA: Regular window partition
2. SW-MSA: Shifted window partition (shift by $\lfloor M/2 \rfloor$ in both dimensions)

`` Layer 1 (W-MSA): Layer 2 (SW-MSA): ┌──┬──┬──┐ ┌─┬──┬──┬─┐ │ │ │ │ │ │ │ │ │ ├──┼──┼──┤ → ├─┼──┼──┼─┤ │ │ │ │ │ │ │ │ │ ├──┼──┼──┤ ├─┼──┼──┼─┤ │ │ │ │ │ │ │ │ │ └──┴──┴──┘ └─┴──┴──┴─┘ ``

Cyclic Shift for Efficiency

Instead of creating irregular windows at boundaries, use cyclic shift + attention masking:

1. Cyclically shift the feature map by $(-\lfloor M/2 \rfloor, -\lfloor M/2 \rfloor)$
2. Apply regular window partition
3. Use attention mask to prevent cross-region attention
4. Reverse cyclic shift

6. Swin Transformer Block <a id='swin-block'></a>

Each Swin Transformer block consists of:

$$\hat{z}^l = \text{W-MSA}(\text{LN}(z^{l-1})) + z^{l-1}$$ $$z^l = \text{MLP}(\text{LN}(\hat{z}^l)) + \hat{z}^l$$

$$\hat{z}^{l+1} = \text{SW-MSA}(\text{LN}(z^l)) + z^l$$ $$z^{l+1} = \text{MLP}(\text{LN}(\hat{z}^{l+1})) + \hat{z}^{l+1}$$

MLP Structure

The MLP has 2 layers with GELU activation: $$\text{MLP}(x) = \text{Linear}(\text{GELU}(\text{Linear}(x)))$$

Hidden dimension = 4 × C (expansion ratio = 4)

7. Hierarchical Feature Maps <a id='hierarchical'></a>

GroundingDINO uses multi-scale features from Swin Transformer stages 2, 3, 4. These are fed into the Feature Pyramid Network (FPN) or directly to the Feature Enhancer.

Feature Scales

For input 800×1333 (typical detection input):

Projection to Common Dimension

All features are projected to 256-dim for the Feature Enhancer: $$\text{Stage}_i \xrightarrow{\text{Conv1×1}} 256\text{-dim}$$

8. Tensor Shapes Through the Network <a id='tensor-shapes'></a>

Complete tensor shape tracking for Swin-T with 800×1333 input:

9. Implementation & Visualization <a id='implementation'></a>

Let's use the actual Swin Transformer from timm to visualize real feature maps.

Summary

The Swin Transformer backbone in GroundingDINO:

1. Processes the input image through 4×4 patch partition → linear embedding
2. Applies hierarchical window attention (W-MSA + SW-MSA) in 4 stages
3. Produces multi-scale features at strides 8, 16, 32
4. Projects all scales to 256-dim for the Feature Enhancer

Key tensor shapes (800×1333 input, Swin-T):

• Input: 1 × 3 × 800 × 1333
• C2 (stride 8): 1 × 192 × 100 × 167
• C3 (stride 16): 1 × 384 × 50 × 84
• C4 (stride 32): 1 × 768 × 25 × 42
• After projection: 1 × 256 × H_i × W_i for each scale

Next: Notebook 03 - BERT Text Encoder

GroundingDINO: BERT Text Encoder

Notebook 03 of 14

This notebook covers the BERT-based text encoder used in GroundingDINO:

• Tokenization and input formatting
• BERT architecture internals
• Tensor shapes at every layer
• Token-level vs sentence-level features
• Sub-sentence phrase grounding
• Visualization of text embeddings and attention

---

Table of Contents

1. Why BERT for Text Encoding?
2. Tokenization & Input Formatting
3. BERT Architecture
4. Multi-Head Self-Attention in BERT
5. Tensor Shapes Through BERT
6. Token-Level Features for Grounding
7. Text Feature Visualization
8. Special Tokens & Phrase Alignment

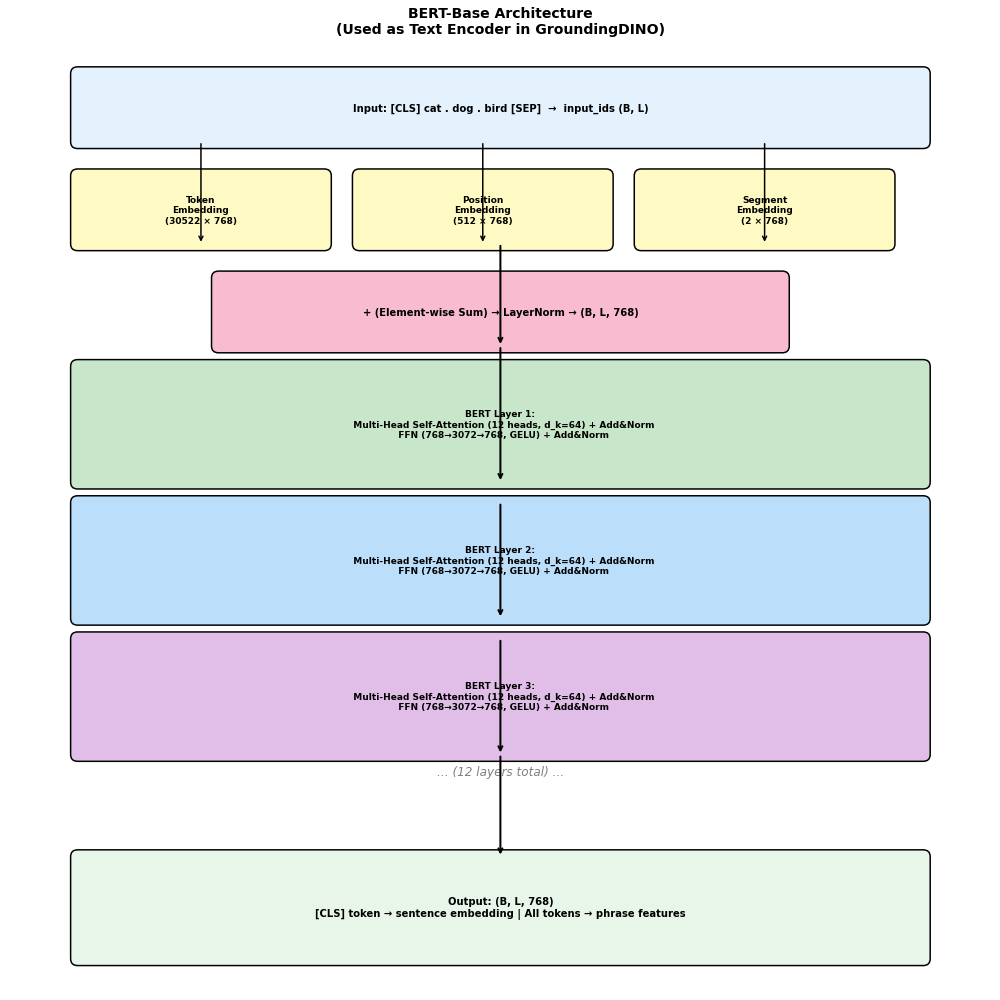

1. Why BERT for Text Encoding? <a id='why-bert'></a>

GroundingDINO uses BERT (Bidirectional Encoder Representations from Transformers) as its text backbone because:

BERT vs Other Text Encoders

Key Insight: Token-Level Features

For phrase grounding, we need per-token features so each word can be matched to a specific region: `` Query: "cat sitting on the mat" Tokens: [CLS] cat sitting on the mat [SEP] ↓ ↓ ↓ ↓ ↓ ↓ ↓ f0 f1 f2 f3 f4 f5 f6 ← 256-dim features ↑ f1 matches bounding box of cat f5 matches bounding box of mat ``

transformers already installed
Using device: cuda

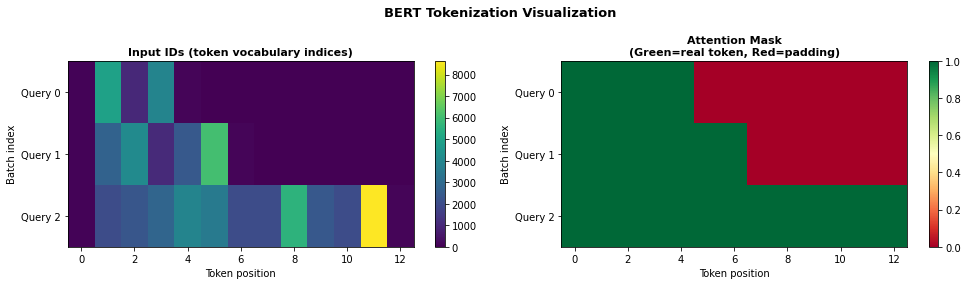

2. Tokenization & Input Formatting <a id='tokenization'></a>

WordPiece Tokenization

BERT uses WordPiece tokenization:

• Common words → single token: cat → [cat]
• Rare words → sub-words: grounding → [ground, ##ing]
• Unknown words → [UNK]

Input Format

`` [CLS] token1 token2 ... tokenN [SEP] ``

GroundingDINO Text Format

Multiple categories are separated by .: `` "cat . dog . bird" → [CLS] cat . dog . bird [SEP] ``

Input Tensors

• input_ids: Token IDs from vocabulary (vocab size = 30,522)
• attention_mask: 1 for real tokens, 0 for padding
• token_type_ids: 0 for all tokens (single sentence)

======================================================================
BERT Tokenization Examples
======================================================================
Query: 'cat'
  Tokens: ['cat']
  IDs:    [101, 4937, 102]
  Length: 3 (including [CLS] and [SEP])
Query: 'cat . dog . bird'
  Tokens: ['cat', '.', 'dog', '.', 'bird']
  IDs:    [101, 4937, 1012, 3899, 1012, 4743, 102]
  Length: 7 (including [CLS] and [SEP])
Query: 'person wearing a red hat'
  Tokens: ['person', 'wearing', 'a', 'red', 'hat']
  IDs:    [101, 2711, 4147, 1037, 2417, 6045, 102]
  Length: 7 (including [CLS] and [SEP])
Query: 'the large brown dog sitting on the grass'
  Tokens: ['the', 'large', 'brown', 'dog', 'sitting', 'on', 'the', 'grass']
  IDs:    [101, 1996, 2312, 2829, 3899, 3564, 2006, 1996, 5568, 102]
  Length: 10 (including [CLS] and [SEP])
======================================================================
Vocabulary size: 30522
[CLS] token ID: 101
[SEP] token ID: 102
[PAD] token ID: 0
Max sequence length: 512

Batch Tokenization:
  input_ids shape:      torch.Size([3, 13])  (B, max_seq_len)
  attention_mask shape: torch.Size([3, 13])
  token_type_ids shape: torch.Size([3, 13])
Input IDs (first 3 sequences):
  [0] 'cat . dog'
      Tokens: ['[CLS]', 'cat', '.', 'dog', '[SEP]']
      Padded length: 13, Real length: 5
  [1] 'person wearing a red hat'
      Tokens: ['[CLS]', 'person', 'wearing', 'a', 'red', 'hat', '[SEP]']
      Padded length: 13, Real length: 7
  [2] 'the large brown dog sitting on the grass near the fence'
      Tokens: ['[CLS]', 'the', 'large', 'brown', 'dog', 'sitting', 'on', 'the', 'grass', 'near', 'the', 'fence', '[SEP]']
      Padded length: 13, Real length: 13

tensor([[1, 1, 1, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0],
        [1, 1, 1, 1, 1, 1, 1, 0, 0, 0, 0, 0, 0],
        [1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1]])

3. BERT Architecture <a id='bert-arch'></a>

BERT-Base Configuration

BERT Layer Structure

Each of the 12 BERT layers contains: `` Input x (B, L, 768) ↓ Multi-Head Self-Attention ↓ Add & LayerNorm ↓ Feed-Forward Network (768 → 3072 → 768) ↓ Add & LayerNorm ↓ Output (B, L, 768) ``

Embeddings

BERT input = Token Embedding + Position Embedding + Segment Embedding: $$E_{input} = E_{token} + E_{position} + E_{segment}$$

BERT-Base Configuration:
  Hidden size:          768
  Num hidden layers:    12
  Num attention heads:  12
  Head dimension:       64
  Intermediate size:    3072
  Max position embed:   512
  Vocab size:           30522
  Hidden act:           gelu
Total parameters: 109,482,240 (109.5M)

4. Multi-Head Self-Attention in BERT <a id='bert-attention'></a>

Attention Formula

$$\text{Attention}(Q, K, V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V$$

For BERT-base:

• $d_{model} = 768$
• $h = 12$ heads
• $d_k = d_v = 768/12 = 64$

Multi-Head Attention

$$\text{MultiHead}(Q, K, V) = \text{Concat}(\text{head}_1, ..., \text{head}_h)W^O$$

where $\text{head}_i = \text{Attention}(QW_i^Q, KW_i^K, VW_i^V)$

Tensor Shapes in BERT Attention

For input (B, L, 768) with L=10 tokens: `` Q = x @ W_Q: (B, L, 768) @ (768, 768) → (B, L, 768) → (B, 12, L, 64) K = x @ W_K: (B, L, 768) @ (768, 768) → (B, L, 768) → (B, 12, L, 64) V = x @ W_V: (B, L, 768) @ (768, 768) → (B, L, 768) → (B, 12, L, 64) Attn = QK^T / sqrt(64): (B, 12, L, 64) @ (B, 12, 64, L) → (B, 12, L, L) Out = softmax(Attn) @ V: (B, 12, L, L) @ (B, 12, L, 64) → (B, 12, L, 64) Concat + proj: (B, 12, L, 64) → (B, L, 768) ``

BERT Self-Attention Tensor Shapes:
==================================================
Input x: torch.Size([2, 15, 768])  (B=2, L=15, D=768)
Q, K, V (before reshape): torch.Size([2, 15, 768])  (B, L, D)
Q, K, V (multi-head):     torch.Size([2, 12, 15, 64])  (B, H=12, L, d_k=64)
Attention scores:         torch.Size([2, 12, 15, 15])  (B, H, L, L)
Attention weights:        torch.Size([2, 12, 15, 15])  (B, H, L, L) [after softmax]
Context (attn @ V):       torch.Size([2, 12, 15, 64])  (B, H, L, d_k)
After concat heads:       torch.Size([2, 15, 768])  (B, L, D)
Output:                   torch.Size([2, 15, 768])  (B, L, D)
Final output: torch.Size([2, 15, 768])

5. Tensor Shapes Through BERT <a id='tensor-shapes'></a>

Complete tensor shape tracking for BERT-base with a sample query:

Query: 'cat sitting on the mat . dog running in the park'
Tokens: ['cat', 'sitting', 'on', 'the', 'mat', '.', 'dog', 'running', 'in', 'the', 'park']
Sequence length L = 13 (including [CLS] and [SEP])
BERT Output Shapes:
  last_hidden_state:  torch.Size([1, 13, 768])  (B, L, 768)
  pooler_output:      torch.Size([1, 768])  (B, 768) [CLS token after linear+tanh]
  hidden_states:      13 tensors (embedding + 12 layers)
    Each:             torch.Size([1, 13, 768])
  attentions:         12 tensors (12 layers)
    Each:             torch.Size([1, 12, 13, 13])  (B, num_heads, L, L)
Total shape entries: 44
          Component            Shape                        Description
          Input IDs           1 × 13           Token vocabulary indices
     Attention Mask           1 × 13                  1=real, 0=padding
   Token Embeddings     1 × 13 × 768        Lookup from 30522×768 table
Position Embeddings     1 × 13 × 768          Lookup from 512×768 table
 Segment Embeddings     1 × 13 × 768            Lookup from 2×768 table
 Embedding Sum + LN     1 × 13 × 768        Input to transformer layers
      Layer 1 Q/K/V 1 × 12 × 13 × 64                   12 heads, d_k=64
       Layer 1 Attn 1 × 12 × 13 × 13                  Attention weights
     Layer 1 Output     1 × 13 × 768               After FFN + residual
      Layer 2 Q/K/V 1 × 12 × 13 × 64                   12 heads, d_k=64
       Layer 2 Attn 1 × 12 × 13 × 13                  Attention weights
     Layer 2 Output     1 × 13 × 768               After FFN + residual
      Layer 3 Q/K/V 1 × 12 × 13 × 64                   12 heads, d_k=64
       Layer 3 Attn 1 × 12 × 13 × 13                  Attention weights
     Layer 3 Output     1 × 13 × 768               After FFN + residual
      Layer 4 Q/K/V 1 × 12 × 13 × 64                   12 heads, d_k=64
       Layer 4 Attn 1 × 12 × 13 × 13                  Attention weights
     Layer 4 Output     1 × 13 × 768               After FFN + residual
      Layer 5 Q/K/V 1 × 12 × 13 × 64                   12 heads, d_k=64
       Layer 5 Attn 1 × 12 × 13 × 13                  Attention weights
     Layer 5 Output     1 × 13 × 768               After FFN + residual
      Layer 6 Q/K/V 1 × 12 × 13 × 64                   12 heads, d_k=64
       Layer 6 Attn 1 × 12 × 13 × 13                  Attention weights
     Layer 6 Output     1 × 13 × 768               After FFN + residual
      Layer 7 Q/K/V 1 × 12 × 13 × 64                   12 heads, d_k=64
       Layer 7 Attn 1 × 12 × 13 × 13                  Attention weights
…
(58 lines total — see the notebook for the full output)

6. Token-Level Features for Grounding <a id='token-features'></a>

How GroundingDINO Uses BERT Features

GroundingDINO uses the full token-level output (not just [CLS]):

1. Feature Enhancer: All token features participate in cross-modal attention
2. Contrastive Loss: Each detected box is matched to specific tokens
3. Phrase Grounding: Token features are used to identify which words correspond to which box

Projection to 256-dim

BERT outputs 768-dim features, but GroundingDINO uses 256-dim: $$\text{BERT output} \in \mathbb{R}^{B \times L \times 768} \xrightarrow{\text{Linear}} \mathbb{R}^{B \times L \times 256}$$

Text Feature Masking

The attention mask is used to ignore padding tokens in all subsequent operations.

7. Text Feature Visualization <a id='visualization'></a>

Let's visualize BERT attention patterns and how they capture semantic relationships.

8. Special Tokens & Phrase Alignment <a id='special-tokens'></a>

GroundingDINO Text Format

GroundingDINO uses a specific text format for multi-category detection:

```python

Single category

text = "cat"

Multiple categories (dot-separated)

text = "cat . dog . bird"

Referring expression

text = "the large brown dog sitting on the grass" ```

Phrase Alignment

After detection, each bounding box is matched to specific tokens:

• The model outputs a logit vector of size L (sequence length)
• High logits at token positions indicate the box corresponds to those words
• This enables phrase grounding: knowing which words describe which box

Token Position Tracking

For "cat . dog . bird" → [CLS] cat . dog . bird [SEP]:

• Token 1 (cat) → category 1
• Token 3 (dog) → category 2
• Token 5 (bird) → category 3
• Tokens 2, 4 (.) → separators (ignored)

Summary

The BERT text encoder in GroundingDINO:

1. Tokenizes the text query using WordPiece tokenization
2. Encodes tokens through 12 bidirectional transformer layers
3. Outputs token-level features (B, L, 768) — one vector per token
4. Projects to 256-dim for the Feature Enhancer

Key tensor shapes:

• Input: (B, L) token IDs
• Embeddings: (B, L, 768)
• Each layer Q/K/V: (B, 12, L, 64)
• Each layer attention: (B, 12, L, L)
• Final output: (B, L, 768) → projected to (B, L, 256)

The token-level features enable phrase grounding — matching specific words to specific detected regions.

Next: Notebook 04 - Feature Enhancer

GroundingDINO: Feature Enhancer (Cross-Modal Fusion)

Notebook 04 of 14

This notebook covers the Feature Enhancer — the first stage of cross-modal fusion in GroundingDINO:

• Architecture of the Feature Enhancer
• Image-to-text and text-to-image cross-attention
• Deformable self-attention for image features
• Tensor shapes at every step
• Visualization of cross-modal attention patterns

---

Table of Contents

1. What is the Feature Enhancer?
2. Architecture Overview
3. Deformable Self-Attention (Image)
4. Cross-Modal Attention (Image↔Text)
5. Feature Enhancer Layer
6. Tensor Shapes
7. Implementation & Visualization

1. What is the Feature Enhancer? <a id='what-is'></a>

The Feature Enhancer is the first fusion stage in GroundingDINO. It takes:

• Image features from Swin Transformer (multi-scale, projected to 256-dim)
• Text features from BERT (token-level, projected to 256-dim)

And produces enhanced features where each modality has been informed by the other.

Why is this needed?

Without fusion, the image features don't "know" what text is being queried. The Feature Enhancer allows:

• Image features to attend to relevant text tokens
• Text features to attend to relevant image regions
• Both modalities to be aligned in a shared feature space

Key Design Choices

Comparison with GLIP

GLIP uses a single cross-modal fusion layer. GroundingDINO uses 6 layers of deep fusion, enabling much richer cross-modal interactions.

2. Architecture Overview <a id='architecture'></a>

Feature Enhancer Structure

The Feature Enhancer consists of N=6 identical layers, each containing:

`` Image Features (B, Nv, 256) Text Features (B, L, 256) │ │ ▼ ▼ Deformable Self-Attn Standard Self-Attn (image → image) (text → text) │ │ ▼ ▼ Image-to-Text Cross-Attn Text-to-Image Cross-Attn (image queries, text keys) (text queries, image keys) │ │ ▼ ▼ FFN (image) FFN (text) │ │ ▼ ▼ Enhanced Image Features Enhanced Text Features (B, Nv, 256) (B, L, 256) ``

Where:

• $N_v$ = total visual tokens = sum of all scale tokens
• $L$ = text sequence length
• For 800×1333 input: $N_v = 100 \times 167 + 50 \times 84 + 25 \times 42 = 16700 + 4200 + 1050 = 21950$

3. Deformable Self-Attention (Image) <a id='deformable-attn'></a>

Why Deformable Attention?

Standard attention over all $N_v \approx 22,000$ visual tokens would be $O(N_v^2) \approx 5 \times 10^8$ — too expensive!

Deformable attention samples only K reference points per query:

$$\text{DeformAttn}(q, p, x) = \sum_{m=1}^{M} W_m \left[ \sum_{k=1}^{K} A_{mqk} \cdot W_m' x(p + \Delta p_{mqk}) \right]$$

where:

• $q$ = query feature
• $p$ = reference point (2D location)
• $\Delta p_{mqk}$ = learned offset for head $m$, query $q$, sample $k$
• $A_{mqk}$ = attention weight (scalar)
• $K$ = number of sampling points (default 4)
• $M$ = number of heads (default 8)

Complexity

• Standard attention: $O(N_v^2 \cdot D)$
• Deformable attention: $O(N_v \cdot K \cdot D)$ — linear in $N_v$!

Multi-Scale Deformable Attention

For multi-scale features, reference points are sampled from all scales: $$\text{MSDeformAttn}(q, \hat{p}, \{x^l\}) = \sum_{m=1}^{M} W_m \left[ \sum_{l=1}^{L} \sum_{k=1}^{K} A_{mlqk} \cdot W_m' x^l(\phi_l(\hat{p}) + \Delta p_{mlqk}) \right]$$

4. Cross-Modal Attention (Image↔Text) <a id='cross-modal'></a>

Image-to-Text Cross-Attention

Image features attend to text features: $$\text{ImgToText}(F_v, F_t) = \text{softmax}\left(\frac{F_v W_Q (F_t W_K)^T}{\sqrt{d_k}}\right) F_t W_V$$

• Query: Image features $(B, N_v, 256)$
• Key/Value: Text features $(B, L, 256)$
• Output: $(B, N_v, 256)$ — image features enriched with text context

Text-to-Image Cross-Attention

Text features attend to image features: $$\text{TextToImg}(F_t, F_v) = \text{softmax}\left(\frac{F_t W_Q (F_v W_K)^T}{\sqrt{d_k}}\right) F_v W_V$$

• Query: Text features $(B, L, 256)$
• Key/Value: Image features $(B, N_v, 256)$
• Output: $(B, L, 256)$ — text features enriched with visual context

Attention Mask

The text attention mask is used to prevent attending to padding tokens.

5. Feature Enhancer Layer <a id='enhancer-layer'></a>

Complete Layer Structure

Each Feature Enhancer layer processes both modalities in parallel:

Image branch: $$\hat{F}_v = F_v + \text{DeformSelfAttn}(\text{LN}(F_v))$$ $$\hat{F}_v = \hat{F}_v + \text{ImgToTextCrossAttn}(\text{LN}(\hat{F}_v), F_t)$$ $$F_v' = \hat{F}_v + \text{FFN}(\text{LN}(\hat{F}_v))$$

Text branch: $$\hat{F}_t = F_t + \text{SelfAttn}(\text{LN}(F_t))$$ $$\hat{F}_t = \hat{F}_t + \text{TextToImgCrossAttn}(\text{LN}(\hat{F}_t), F_v)$$ $$F_t' = \hat{F}_t + \text{FFN}(\text{LN}(\hat{F}_t))$$

6. Tensor Shapes <a id='tensor-shapes'></a>

Complete tensor shape tracking through the Feature Enhancer:

7. Implementation & Visualization <a id='implementation'></a>

Let's visualize how features change through the Feature Enhancer layers.

Summary

The Feature Enhancer in GroundingDINO:

1. Takes multi-scale image features (B, Nv, 256) and text features (B, L, 256)
2. Applies 6 layers of bidirectional cross-modal fusion
3. Uses deformable self-attention for efficient image processing
4. Produces enhanced features where each modality is informed by the other

Key tensor shapes:

• Image input/output: (B, 21950, 256) for 800×1333 input
• Text input/output: (B, L, 256)
• Cross-modal attention: (B, 8, Nv, L) and (B, 8, L, Nv)

This is Stage 1 of 3 fusion stages in GroundingDINO.

Next: Notebook 05 - Language-Guided Query Selection

GroundingDINO: Language-Guided Query Selection

Notebook 05 of 14

This notebook covers Language-Guided Query Selection — Stage 2 of fusion in GroundingDINO:

• What queries are and why they matter
• How text guides the selection of visual queries
• Comparison with DINO's fixed queries
• Tensor shapes and implementation
• Visualization of selected queries

---

Table of Contents

1. What are Queries in DETR-based Detectors?
2. DINO's Anchor-Based Queries
3. Language-Guided Query Selection
4. Mixed Query Selection
5. Tensor Shapes
6. Implementation & Visualization

1. What are Queries in DETR-based Detectors? <a id='what-are-queries'></a>

In DETR-style detectors, queries are learnable vectors that the decoder uses to "ask" about specific regions of the image.

DETR Query Mechanism

`` N learnable queries (N=300) ↓ Decoder (cross-attends to image features) ↓ N detection predictions (box + class) ``

Problem with Fixed Queries

In standard DETR/DINO:

• Queries are fixed and text-agnostic
• All N queries are used regardless of what text is queried
• Queries don't know what to look for

GroundingDINO's Solution

Select queries that are relevant to the text query:

• Use text features to score image regions
• Select top-K image regions as queries
• These queries already "know" what to look for

Why This Matters

`` Text: "cat" → Select image regions that look like cats → Decoder refines these cat-like regions → Better detection of cats! ``

2. DINO's Anchor-Based Queries <a id='dino-queries'></a>

DINO Query Types

DINO uses two types of queries:

1. Content queries $c_q \in \mathbb{R}^{256}$: Learnable content embeddings
2. Positional queries (anchors) $a_q \in \mathbb{R}^4$: Reference box positions $(x_c, y_c, w, h)$

Query Initialization in DINO

`` Method 1: Learned queries (fixed, text-agnostic) Method 2: Mixed query selection (from image features) ``

GroundingDINO Extension

GroundingDINO extends DINO's mixed query selection to be language-guided:

• Score image features by their similarity to text features
• Select top-K image features as initial queries
• Use their positions as anchor boxes

3. Language-Guided Query Selection <a id='lgqs'></a>

Algorithm

Given:

• Enhanced image features $F_v \in \mathbb{R}^{B \times N_v \times 256}$ (from Feature Enhancer)
• Enhanced text features $F_t \in \mathbb{R}^{B \times L \times 256}$ (from Feature Enhancer)

Step 1: Compute image-text similarity scores $$S = F_v \cdot F_t^T \in \mathbb{R}^{B \times N_v \times L}$$

Step 2: Aggregate over text tokens (max or mean) $$s_i = \max_j S_{ij} \in \mathbb{R}^{B \times N_v}$$

Step 3: Select top-K image features $$\text{idx} = \text{TopK}(s, K=900)$$

Step 4: Use selected features as initial queries $$Q_{init} = F_v[\text{idx}] \in \mathbb{R}^{B \times K \times 256}$$

Step 5: Use positions of selected features as anchor boxes $$A_{init} = \text{pos}[\text{idx}] \in \mathbb{R}^{B \times K \times 4}$$

Key Parameters

• $K = 900$ queries (same as DINO)
• Positions are normalized $(x_c, y_c, w, h) \in [0,1]^4$

4. Mixed Query Selection <a id='mixed-query'></a>

Two Types of Queries in GroundingDINO

GroundingDINO uses mixed query selection (from DINO):

1. Content queries (dynamic): Selected from image features

• $c_q = F_v[\text{topk\_idx}]$ — image features at selected positions
• These carry semantic content about what's at each location

1. Positional queries (anchors): Positions of selected features

• $a_q = \text{pos}[\text{topk\_idx}]$ — 4D box coordinates
• These tell the decoder where to look

Anchor Box Encoding

Anchor boxes are encoded as $(x_c, y_c, w, h)$ in normalized coordinates. They are converted to positional embeddings using sinusoidal encoding:

$$\text{PE}(a) = \text{MLP}(\text{SinEmbed}(a))$$

Denoising Training

During training, DINO adds noisy ground-truth boxes as additional queries for denoising training:

• Adds Gaussian noise to GT box positions
• Adds random label noise
• Forces the model to denoise → better training signal

5. Tensor Shapes <a id='tensor-shapes'></a>

6. Implementation & Visualization <a id='implementation'></a>

Summary

Language-Guided Query Selection in GroundingDINO:

1. Computes image-text similarity: (B, Nv, 256) × (B, 256, L) → (B, Nv, L)
2. Aggregates over text tokens: (B, Nv, L) → (B, Nv) via max-pooling
3. Selects top-K=900 image features by score
4. Outputs content queries (B, 900, 256) and anchor boxes (B, 900, 4)

This is Stage 2 of 3 fusion stages — the queries are now text-aware!

Next: Notebook 06 - Cross-Modal Decoder

GroundingDINO: Cross-Modal Decoder

Notebook 06 of 14

This notebook covers the Cross-Modal Decoder — Stage 3 of fusion in GroundingDINO:

• Decoder architecture with 6 layers
• Self-attention, image cross-attention, text cross-attention
• Iterative box refinement
• Detection head (box regression + contrastive score)
• Tensor shapes at every step

---

Table of Contents

1. Decoder Overview
2. Decoder Layer Structure
3. Self-Attention on Queries
4. Image Cross-Attention (Deformable)
5. Text Cross-Attention
6. Iterative Box Refinement
7. Detection Head
8. Tensor Shapes
9. Implementation & Visualization

1. Decoder Overview <a id='overview'></a>

The Cross-Modal Decoder is the final stage of GroundingDINO. It takes:

• Queries from Language-Guided Query Selection: (B, 900, 256)
• Anchor boxes: (B, 900, 4)
• Enhanced image features: (B, Nv, 256)
• Enhanced text features: (B, L, 256)

And produces:

• Bounding boxes: (B, 900, 4) — refined box predictions
• Contrastive scores: (B, 900, L) — similarity to each text token

Key Innovation: Text Cross-Attention in Decoder

Unlike standard DINO decoder (which only has image cross-attention), GroundingDINO adds text cross-attention at every decoder layer:

``` Standard DINO Decoder Layer: Self-Attn → Image Cross-Attn → FFN

GroundingDINO Decoder Layer: Self-Attn → Image Cross-Attn → Text Cross-Attn → FFN ```

This allows each query to continuously refine its understanding of both the visual content AND the text query.

2. Decoder Layer Structure <a id='layer-structure'></a>

Mathematical Formulation

For each decoder layer $l$, given queries $Q^l$, image features $F_v$, text features $F_t$:

Step 1: Self-Attention $$\hat{Q}^l = Q^l + \text{SelfAttn}(\text{LN}(Q^l))$$

Step 2: Image Cross-Attention (Deformable) $$\tilde{Q}^l = \hat{Q}^l + \text{DeformCrossAttn}(\text{LN}(\hat{Q}^l), F_v, A^l)$$

where $A^l$ are the current anchor boxes (updated each layer)

Step 3: Text Cross-Attention ← GroundingDINO's key addition $$\bar{Q}^l = \tilde{Q}^l + \text{TextCrossAttn}(\text{LN}(\tilde{Q}^l), F_t)$$

Step 4: FFN $$Q^{l+1} = \bar{Q}^l + \text{FFN}(\text{LN}(\bar{Q}^l))$$

Step 5: Box Refinement $$\Delta b^l = \text{BoxHead}(Q^{l+1})$$ $$A^{l+1} = \text{sigmoid}(\text{inverse\_sigmoid}(A^l) + \Delta b^l)$$

3. Self-Attention on Queries <a id='self-attn'></a>

Purpose

Self-attention among the 900 queries allows them to:

• Suppress duplicate detections (NMS-free!)
• Share information between queries
• Coordinate to cover different objects

Tensor Shapes

`` Input: (B, 900, 256) Q = K = V = queries Q, K, V: (B, 8, 900, 32) [8 heads, d_k=32] Attn: (B, 8, 900, 900) Output: (B, 900, 256) ``

Note on Complexity

Self-attention over 900 queries: $O(900^2) = 810,000$ — manageable!

4. Image Cross-Attention (Deformable) <a id='img-cross-attn'></a>

Purpose

Each query attends to relevant image regions to gather visual evidence:

• Query = "what am I looking for?"
• Image features = "what's in the image?"
• Cross-attention = "find the relevant visual evidence"

Deformable Cross-Attention

Uses the current anchor box as the reference point: $$\text{DeformCrossAttn}(q, a, F_v) = \sum_{m,k} A_{mqk} \cdot W_m' F_v(\phi(a) + \Delta p_{mqk})$$

where $\phi(a)$ maps the anchor box center to feature map coordinates.

Tensor Shapes

`` Query: (B, 900, 256) Anchors: (B, 900, 4) → reference points Offsets: (B, 900, 8, 4, 2) [8 heads, 4 points, 2D offset] Weights: (B, 900, 8, 4) [8 heads, 4 points] Output: (B, 900, 256) ``

5. Text Cross-Attention <a id='txt-cross-attn'></a>

Purpose (GroundingDINO's Key Innovation)

Each query attends to text tokens to understand what it should detect:

• Query = "I found something at this location"
• Text features = "what words describe what I'm looking for?"
• Cross-attention = "which words match what I found?"

Tensor Shapes

`` Query: (B, 900, 256) Text: (B, L, 256) Q: (B, 8, 900, 32) K/V: (B, 8, L, 32) Attn: (B, 8, 900, L) ← each query attends to each text token Output: (B, 900, 256) ``

Connection to Contrastive Score

The text cross-attention weights (B, 8, 900, L) are related to the final contrastive scores used for detection confidence.

6. Iterative Box Refinement <a id='box-refinement'></a>

How Box Refinement Works

At each decoder layer, the box is refined: $$b^{l+1} = \sigma(\sigma^{-1}(b^l) + \Delta b^l)$$

where:

• $b^l$ = current box prediction (normalized)
• $\Delta b^l$ = predicted offset from box head
• $\sigma$ = sigmoid function
• $\sigma^{-1}$ = inverse sigmoid (logit)

Why Inverse Sigmoid?

Working in logit space allows:

• Unconstrained offsets (can be any real number)
• Sigmoid ensures output stays in [0,1]
• Gradients flow better than direct sigmoid

Box Head Architecture

`` Query (256) → Linear(256) → ReLU → Linear(4) → Δbox `` Separate box heads for each decoder layer (6 total).

7. Detection Head <a id='detection-head'></a>

Two Outputs

1. Box Regression Head $$\Delta b = \text{MLP}(q) \in \mathbb{R}^4$$ Applied at each decoder layer for iterative refinement.

2. Contrastive Score Head $$s = q \cdot F_t^T \in \mathbb{R}^L$$

The contrastive score is computed as the dot product between the query feature and each text token feature:

• High score at token $j$ → query matches word $j$
• Used for both detection confidence and phrase grounding

Final Score Computation

$$\text{score}_i = \max_j \sigma(s_{ij})$$

The detection confidence is the maximum score over all text tokens.

8. Tensor Shapes <a id='tensor-shapes'></a>

Summary

The Cross-Modal Decoder in GroundingDINO:

1. Takes 900 language-guided queries + image features + text features
2. Applies 6 layers of: Self-Attn → Image Cross-Attn → Text Cross-Attn → FFN
3. Refines bounding boxes iteratively at each layer
4. Outputs contrastive scores (B, 900, L) and final boxes (B, 900, 4)

The text cross-attention at every decoder layer is GroundingDINO's key innovation — it ensures queries continuously align with the text query throughout the decoding process.

Next: Notebook 07 - Loss Functions

GroundingDINO: Training Strategy & Optimizers

Notebook 08 of 14

This notebook covers the complete training strategy for GroundingDINO:

• Optimizer configuration (AdamW)
• Learning rate schedule
• Parameter groups and weight decay
• Data augmentation
• Training datasets and pre-training
• Batch size and gradient accumulation

---

1. Optimizer: AdamW

GroundingDINO uses AdamW (Adam with decoupled weight decay):

$$m_t = \beta_1 m_{t-1} + (1-\beta_1) g_t$$ $$v_t = \beta_2 v_{t-1} + (1-\beta_2) g_t^2$$ $$\theta_t = \theta_{t-1} - \alpha \frac{m_t}{\sqrt{v_t} + \epsilon} - \alpha \lambda \theta_{t-1}$$

Hyperparameters

2. Learning Rate Schedule

GroundingDINO uses a step decay schedule:

• Train for 25 epochs total
• Decay LR by 0.1× at epoch 11 and epoch 17
• Warmup for first 1000 iterations

Warmup Schedule

$$\text{LR}(t) = \text{LR}_{base} \cdot \frac{t}{T_{warmup}}, \quad t < T_{warmup}$$

Step Decay

$$\text{LR}(e) = \text{LR}_{base} \cdot 0.1^{\lfloor e / \text{step} \rfloor}$$

3. Training Configuration

Hardware & Batch Size

Data Augmentation

Training Datasets

4. Gradient Clipping & Mixed Precision

Gradient Clipping

Clips gradient norm to prevent exploding gradients: $$g \leftarrow g \cdot \min\left(1, \frac{\text{max\_norm}}{\|g\|}\right)$$

GroundingDINO uses max_norm=0.1.

Mixed Precision (FP16)

• Forward pass in FP16 (faster, less memory)
• Loss scaling to prevent underflow
• Gradient unscaling before clipping
• Optimizer step in FP32

5. Frozen vs Trainable Parameters

Parameter Freezing Strategy

All parameters are trainable, but backbone and text encoder use 10× smaller LR.

Summary

GroundingDINO training strategy:

• Optimizer: AdamW with differential LRs (1e-4 base, 1e-5 for backbone/BERT)
• Schedule: Step decay at epochs 11 and 17, with warmup
• Regularization: Weight decay 1e-4, gradient clipping 0.1
• Efficiency: Mixed precision FP16, 8× A100 GPUs
• Data: Objects365 + GoldG + Cap4M for pre-training, COCO for fine-tuning

Next: Notebook 09 - Setup & Installation

GroundingDINO: Setup, Installation & Model Download

Notebook 09 of 14

This notebook covers:

• Environment setup
• Installing GroundingDINO
• Downloading model weights from HuggingFace
• Verifying the installation

---

1. Environment Setup

2. Install GroundingDINO

3. Download Model Weights from HuggingFace

4. Load and Verify Model

5. Model Architecture Summary

Summary

Setup checklist:

• ✓ Clone GroundingDINO from GitHub
• ✓ Install with pip install -e .
• ✓ Download weights from HuggingFace to /mnt/mydata/huggingface/
• ✓ Verify model loads correctly

Model files:

• groundingdino_swint_ogc.pth — Swin-T backbone (~172M params)
• groundingdino_swinb_cogcoor.pth — Swin-B backbone (~253M params)

Next: Notebook 10 - Inference & Tensor Shapes

GroundingDINO: Inference & Tensor Shapes

Notebook 10 of 14

This notebook covers:

• Running inference with the actual GroundingDINO model
• Tracking tensor shapes through every layer
• Visualizing detections
• Understanding the output format

---

1. Load Model

2. Prepare Input Image

3. Input Preprocessing & Tensor Shapes

4. Run Inference

5. Visualize Detections

6. Complete Tensor Shape Tracking

7. Output Post-Processing

Summary

GroundingDINO inference pipeline:

1. Preprocess: Resize image, normalize, tokenize text
2. Forward pass: ~0.1s on GPU (Swin-T)
3. Post-process: Filter by threshold, convert box format
4. Output: Boxes (cxcywh normalized), scores, phrases

Next: Notebook 11 - Intermediate Layer Visualization

GroundingDINO: Intermediate Layer Visualization

Notebook 11 of 14

This notebook hooks into the actual GroundingDINO model to extract and visualize intermediate activations:

• Swin Transformer feature maps at each stage
• BERT token embeddings evolution
• Feature Enhancer outputs
• Decoder query evolution
• Box refinement at each decoder layer

---

1. Hook-Based Feature Extraction

2. Register Hooks on Key Layers

3. Run Inference and Extract Features

4. Visualize Swin Feature Maps

5. Visualize BERT Token Embeddings

6. Visualize Decoder Query Evolution

Summary

Key observations from intermediate layer visualization:

1. Swin features: Progressively more abstract, lower resolution, higher channels
2. BERT features: Token representations become more contextual in deeper layers
3. Decoder queries: Boxes converge toward GT objects across 6 layers
4. Feature norms: Stabilize after initial layers

Next: Notebook 12 - Attention Visualization

GroundingDINO: Attention Visualization & Cross-Modal Attention

Notebook 12 of 14

This notebook visualizes all attention patterns in GroundingDINO:

• Swin window attention maps
• BERT self-attention patterns
• Feature Enhancer cross-modal attention (image↔text)
• Decoder text cross-attention (query→text)
• Phrase grounding visualization

---

1. BERT Self-Attention Visualization

2. Cross-Modal Attention Visualization (Feature Enhancer)

3. Decoder Text Cross-Attention (Phrase Grounding)

4. Attention Rollout Visualization

5. Swin Window Attention Visualization

Summary

Attention patterns in GroundingDINO:

1. BERT self-attention: Captures syntactic/semantic relationships between text tokens
2. Swin window attention: Local attention within 7×7 windows, shifted for cross-window connections
3. Feature Enhancer cross-attention: Image regions attend to relevant text tokens (and vice versa)
4. Decoder text cross-attention: Each detected box attends to its matching text phrase
5. Attention rollout: Propagates attention through all layers for global view

Next: Notebook 13 - Dataset Download & Preparation

GroundingDINO: Dataset Download & Preparation (COCO)

Notebook 13 of 14

This notebook covers:

• Downloading COCO 2017 dataset
• Understanding COCO annotation format
• Preparing data for GroundingDINO evaluation
• Converting annotations to text queries
• Visualizing COCO samples

---

1. Download COCO 2017

2. COCO Annotation Format

3. COCO Statistics

4. Convert COCO to GroundingDINO Format

5. Visualize COCO Samples

6. COCO Category to Text Query Mapping

Summary

COCO 2017 dataset for GroundingDINO:

• val2017: 5,000 images, ~36,000 annotations, 80 categories
• train2017: 118,000 images, ~860,000 annotations
• Format conversion: COCO [x1, y1, w, h] → GroundingDINO [cx, cy, w, h] normalized
• Text query: Category names joined with . separator

Next: Notebook 14 - Evaluation on COCO

GroundingDINO: Evaluation on COCO & Zero-Shot Transfer

Notebook 14 of 14

This final notebook covers:

• Running GroundingDINO on COCO val2017
• Computing COCO AP metrics
• Zero-shot transfer evaluation
• Comparing with baselines
• Qualitative analysis

---

1. Load Model and COCO Data

2. COCO Evaluation Metrics

3. Run Evaluation on COCO val2017

4. Visualize Evaluation Results

5. Zero-Shot Transfer Analysis

6. Qualitative Analysis

7. Complete Results Summary

8. Complete Notebook Series Summary

Final Summary

GroundingDINO Architecture Recap

`` Image → [Swin Transformer] → Multi-scale features (C2, C3, C4) Text → [BERT Encoder] → Token features (L × 768 → L × 256) ↓ [Feature Enhancer] (6 layers) ├── Deformable self-attention (image) ├── Standard self-attention (text) ├── Image→Text cross-attention └── Text→Image cross-attention ↓ [Language-Guided Query Selection] └── Top-900 image features by text similarity ↓ [Cross-Modal Decoder] (6 layers) ├── Self-attention (queries) ├── Image cross-attention (deformable) ├── Text cross-attention ← KEY INNOVATION └── Box refinement (iterative) ↓ [Detection Head] ├── Boxes: (B, 900, 4) → filter by threshold └── Scores: (B, 900, L) → contrastive alignment ``

Performance

• Zero-shot COCO AP: 52.5 (Swin-B)
• Fine-tuned COCO AP: 63.0 (Swin-B)
• ODinW (35 datasets): 52.5 mean AP
• RefCOCO val: 89.19%

Model Files

• Weights: /mnt/mydata/huggingface/groundingdino_swint_ogc.pth
• Config: /mnt/mydata/huggingface/GroundingDINO/groundingdino/config/
• COCO data: /mnt/mydata/huggingface/coco2017/

Marrying Grounding DINO with GLIGEN for Image Editing





!gdgligen

Build environment

GLIGEN uses a modified diffusers. We highly recommoned to use new conda virtural environment for the notebook!

To do this, please run the following commands and rerun the notebook with the new environment:

``bash conda create -n gligen_diffusers python=3.10 conda activate gligen_diffusers ``

Load grounding dino models

final text_encoder_type: bert-base-uncased

Some weights of the model checkpoint at bert-base-uncased were not used when initializing BertModel: ['cls.predictions.transform.dense.weight', 'cls.seq_relationship.weight', 'cls.predictions.transform.LayerNorm.bias', 'cls.predictions.transform.dense.bias', 'cls.predictions.bias', 'cls.predictions.transform.LayerNorm.weight', 'cls.seq_relationship.bias']
- This IS expected if you are initializing BertModel from the checkpoint of a model trained on another task or with another architecture (e.g. initializing a BertForSequenceClassification model from a BertForPreTraining model).
- This IS NOT expected if you are initializing BertModel from the checkpoint of a model that you expect to be exactly identical (initializing a BertForSequenceClassification model from a BertForSequenceClassification model).

Model loaded from /home/liushilong/.cache/huggingface/hub/models--ShilongLiu--GroundingDINO/snapshots/d6b1ecf62f56b2affe410ed025352a07b57d4661/groundingdino_swint_ogc.pth
 => _IncompatibleKeys(missing_keys=[], unexpected_keys=['label_enc.weight'])

Load GLIGEN inpainting models

safety_checker/model.safetensors not found
`text_config_dict` is provided which will be used to initialize `CLIPTextConfig`. The value `text_config["id2label"]` will be overriden.

StableDiffusionGLIGENPipeline {
  "_class_name": "StableDiffusionGLIGENPipeline",
  "_diffusers_version": "0.15.0.dev0",
  "feature_extractor": [
    "transformers",
    "CLIPFeatureExtractor"
  ],
  "requires_safety_checker": true,
  "safety_checker": [
    "stable_diffusion",
    "StableDiffusionSafetyChecker"
  ],
  "scheduler": [
    "diffusers",
    "PNDMScheduler"
  ],
  "text_encoder": [
    "transformers",
    "CLIPTextModel"
  ],
  "tokenizer": [
    "transformers",
    "CLIPTokenizer"
  ],
  "unet": [
    "diffusers",
    "UNet2DConditionModel"
  ],
  "vae": [
    "diffusers",
    "AutoencoderKL"
  ]
}

Load demo image

Image downloaded from url: https://huggingface.co/ShilongLiu/GroundingDINO/resolve/main/art_dog_birthdaycake.png and saved to: art_dog_birthdaycake.png.

Run Grounding DINO

Image Inpainting

[[0.18195317685604095,
  0.3042256236076355,
  0.4422861933708191,
  0.5236865282058716],
 [0.21554315090179443,
  0.6760779619216919,
  0.7596603631973267,
  0.934249758720398]]

Marrying Grounding DINO with Stable Diffusion for Image Editing



!gdsd

Install diffusers

Load grounding dino models

final text_encoder_type: bert-base-uncased

Some weights of the model checkpoint at bert-base-uncased were not used when initializing BertModel: ['cls.predictions.transform.LayerNorm.bias', 'cls.predictions.bias', 'cls.predictions.transform.LayerNorm.weight', 'cls.seq_relationship.weight', 'cls.predictions.transform.dense.bias', 'cls.predictions.transform.dense.weight', 'cls.seq_relationship.bias']
- This IS expected if you are initializing BertModel from the checkpoint of a model trained on another task or with another architecture (e.g. initializing a BertForSequenceClassification model from a BertForPreTraining model).
- This IS NOT expected if you are initializing BertModel from the checkpoint of a model that you expect to be exactly identical (initializing a BertForSequenceClassification model from a BertForSequenceClassification model).

Model loaded from /home/liushilong/.cache/huggingface/hub/models--ShilongLiu--GroundingDINO/snapshots/4d4409dc29f29629f4ebb808a68ea67be53886b6/groundingdino_swint_ogc.pth
 => _IncompatibleKeys(missing_keys=[], unexpected_keys=['label_enc.weight'])

Load stable diffusion inpainting models

Load demo image

Image downloaded from url: https://huggingface.co/ShilongLiu/GroundingDINO/resolve/main/cats.png and saved to: cats.png.

Run Grounding DINO

Image Inpainting

final text_encoder_type: bert-base-uncased
